PA5370-0500
Corrediça EXT. Total ZINC
Estimated delivery: On request
Datasheet
3D Draw - Sign in to download
| Material | Galvanized |
|---|---|
| Finishing | Aço Zincado |

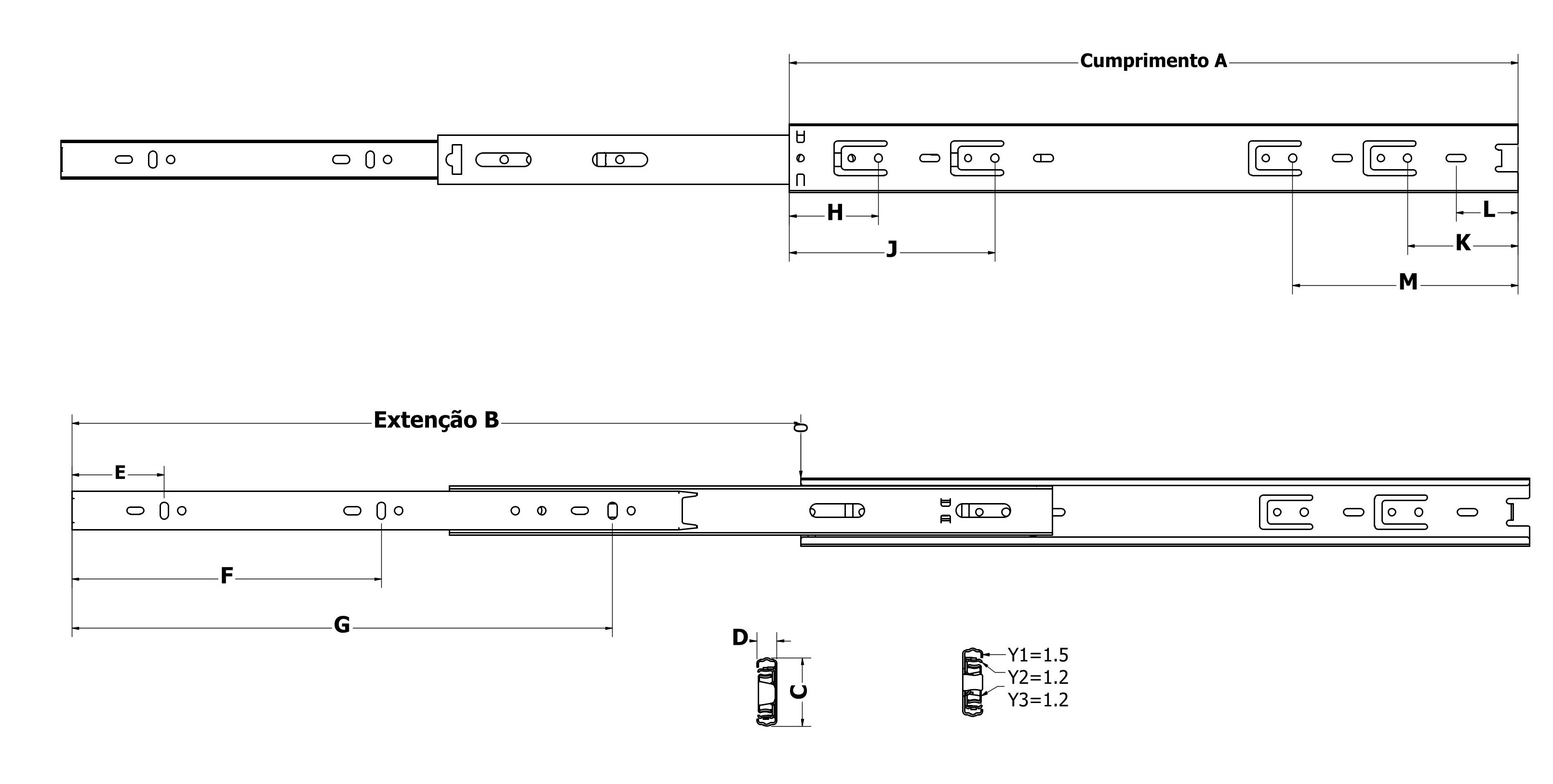

| A | 500 |
|---|---|
| B | 497 |
| C | 37.50 |
| D | 13 |
| E | 51 |
| F | 247 |
| G | 450 |
| H | 49 |
| J | 114 |
| K | 62 |
| L | 33 |
| M | 126 |
Product Variations
| Model | Material | Finishing | Slide Length | Slide Load Capacity | A | B | C | D | E | F | G | H | J | K | L | M | Stock | Quantity | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PA5370-0250 PA5370-0250 | Galvanized | Aço Zincado | 250 | 45 | 250 | 247 | 37.50 | 13 | 44 | - | 207.50 | 50 | 114 | 61,50 | 33 | - | |||
| PA5370-0300 PA5370-0300 | Galvanized | Aço Zincado | 300 | 45 | 300 | 294 | 37.50 | 13 | 51 | 148 | 251.50 | 49 | 113.50 | 62 | 34 | - | |||
| PA5370-0350 PA5370-0350 | Galvanized | Aço Zincado | 350 | 45 | 350 | 353 | 37.50 | 13 | 51 | 173 | 301 | 49 | 113.50 | 62 | 33 | 125,50 | |||
| PA5370-0400 PA5370-0400 | Galvanized | Aço Zincado | 400 | 45 | 400 | 401 | 37.50 | 13 | 51 | 198 | 351 | 50 | 114.50 | 61 | 33 | 125 | |||
| PA5370-0450 PA5370-0450 | Galvanized | Aço Zincado | 450 | 45 | 450 | 448 | 37.50 | 13 | 51 | 196 | 348 | 49 | 114 | 62 | 33 | 126 | |||
| PA5370-0500 PA5370-0500 | Galvanized | Aço Zincado | 500 | 45 | 500 | 497 | 37.50 | 13 | 51 | 247 | 450 | 49 | 114 | 62 | 33 | 126 | |||
PA5370-0250
Corrediça EXT. Total ZINC
Material = Galvanized
Finishing = Aço Zincado
Slide Length = 250
Slide Load Capacity = 45
A = 250
B = 247
C = 37.50
D = 13
E = 44
G = 207.50
H = 50
J = 114
K = 61,50
L = 33
PA5370-0300
Corrediça EXT. Total ZINC
Material = Galvanized
Finishing = Aço Zincado
Slide Length = 300
Slide Load Capacity = 45
A = 300
B = 294
C = 37.50
D = 13
E = 51
F = 148
G = 251.50
H = 49
J = 113.50
K = 62
L = 34
PA5370-0350
Corrediça EXT. Total ZINC
Material = Galvanized
Finishing = Aço Zincado
Slide Length = 350
Slide Load Capacity = 45
A = 350
B = 353
C = 37.50
D = 13
E = 51
F = 173
G = 301
H = 49
J = 113.50
K = 62
L = 33
M = 125,50
PA5370-0400
Corrediça EXT. Total ZINC
Material = Galvanized
Finishing = Aço Zincado
Slide Length = 400
Slide Load Capacity = 45
A = 400
B = 401
C = 37.50
D = 13
E = 51
F = 198
G = 351
H = 50
J = 114.50
K = 61
L = 33
M = 125
PA5370-0450
Corrediça EXT. Total ZINC
Material = Galvanized
Finishing = Aço Zincado
Slide Length = 450
Slide Load Capacity = 45
A = 450
B = 448
C = 37.50
D = 13
E = 51
F = 196
G = 348
H = 49
J = 114
K = 62
L = 33
M = 126
PA5370-0500
Corrediça EXT. Total ZINC
Material = Galvanized
Finishing = Aço Zincado
Slide Length = 500
Slide Load Capacity = 45
A = 500
B = 497
C = 37.50
D = 13
E = 51
F = 247
G = 450
H = 49
J = 114
K = 62
L = 33
M = 126
