PA5377-0550
Corrediça EXT. Total ZINC C/ Soft Close
Estimated delivery: On request

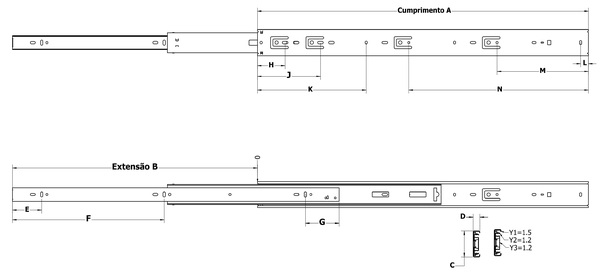

Datasheet
3D Draw - Sign in to download
| Material | Galvanized |
|---|---|
| Finishing | Aço Zincado |
| A | 550 |
|---|---|
| B | 546 |
| C | 45,70 |
| D | 12,70 |
| E | 51 |
| F | 274 |
| G | 43 |
| H | 51 |
| J | 115 |
| K | 198,50 |
| L | 14 |
| M | 275 |
Product Variations
| Model | Material | Finishing | Slide Length | Slide Load Capacity | A | B | C | D | E | F | G | H | J | K | L | M | N | Stock | Quantity | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PA5377-0300 PA5377-0300 | Galvanized | Aço Zincado | 300 | 45 | 300 | 292 | 45,70 | 12,70 | 51 | - | 33,50 | 51 | 115 | - | 14 | - | - | |||
| PA5377-0350 PA5377-0350 | Galvanized | Aço Zincado | 350 | 346 | 45,70 | 12,70 | 51 | 178,50 | 34,50 | 51 | 115 | - | 14 | - | - | |||||
| PA5377-0400 PA5377-0400 | Galvanized | Aço Zincado | 400 | 391 | 45,70 | 12,70 | 51 | 179 | 53 | 51 | 115 | 198 | 16 | 125 | - | |||||
| PA5377-0450 PA5377-0450 | Galvanized | Aço Zincado | 450 | 45 | 450 | 443 | 45,70 | 12,70 | 51 | 210,50 | 39 | 51 | 115 | 199 | 16 | 175 | - | |||
| PA5377-0500 PA5377-0500 | Galvanized | Aço Zincado | 500 | 45 | 500 | 496 | 45,70 | 12,70 | 51 | 210,50 | 39,00 | 51 | 115 | 198,50 | 14 | 225 | - | |||
| PA5377-0550 PA5377-0550 | Galvanized | Aço Zincado | 550 | 45 | 550 | 546 | 45,70 | 12,70 | 51 | 274 | 43 | 51 | 115 | 198,50 | 14 | 275 | - | |||
| PA5377-0600 PA5377-0600 | Galvanized | Aço Zincado | 600 | 394 | 45.50 | 12.50 | 35 | 274.50 | 61 | 51 | 115 | 198.50 | 14 | 165 | 325 | |||||
PA5377-0300
Corrediça EXT. Total ZINC C/ Soft Close
Material = Galvanized
Finishing = Aço Zincado
Slide Length = 300
Slide Load Capacity = 45
A = 300
B = 292
C = 45,70
D = 12,70
E = 51
G = 33,50
H = 51
J = 115
L = 14
PA5377-0350
Corrediça EXT. Total ZINC C/ Soft Close
Material = Galvanized
Finishing = Aço Zincado
A = 350
B = 346
C = 45,70
D = 12,70
E = 51
F = 178,50
G = 34,50
H = 51
J = 115
L = 14
PA5377-0400
Corrediça EXT. Total ZINC C/ Soft Close
Material = Galvanized
Finishing = Aço Zincado
A = 400
B = 391
C = 45,70
D = 12,70
E = 51
F = 179
G = 53
H = 51
J = 115
K = 198
L = 16
M = 125
PA5377-0450
Corrediça EXT. Total ZINC C/ Soft Close
Material = Galvanized
Finishing = Aço Zincado
Slide Length = 450
Slide Load Capacity = 45
A = 450
B = 443
C = 45,70
D = 12,70
E = 51
F = 210,50
G = 39
H = 51
J = 115
K = 199
L = 16
M = 175
PA5377-0500
Corrediça EXT. Total ZINC C/ Soft Close
Material = Galvanized
Finishing = Aço Zincado
Slide Length = 500
Slide Load Capacity = 45
A = 500
B = 496
C = 45,70
D = 12,70
E = 51
F = 210,50
G = 39,00
H = 51
J = 115
K = 198,50
L = 14
M = 225
PA5377-0550
Corrediça EXT. Total ZINC C/ Soft Close
Material = Galvanized
Finishing = Aço Zincado
Slide Length = 550
Slide Load Capacity = 45
A = 550
B = 546
C = 45,70
D = 12,70
E = 51
F = 274
G = 43
H = 51
J = 115
K = 198,50
L = 14
M = 275
PA5377-0600
Corrediça EXT. Total ZINC C/ Soft Close
Material = Galvanized
Finishing = Aço Zincado
A = 600
B = 394
C = 45.50
D = 12.50
E = 35
F = 274.50
G = 61
H = 51
J = 115
K = 198.50
L = 14
M = 165
N = 325
