PA6120321-0LH-0SW
Dobradiça Desmontavel ZMK 50x50 C/ Pernos LH
Estimated delivery: On request
Datasheet
3D Draw - Sign in to download
| Material | Zamak |
|---|---|
| Assembly Style | Exposed mounting |
| Opening Angle | 90º |
| Hinge Type | Flat hinge |

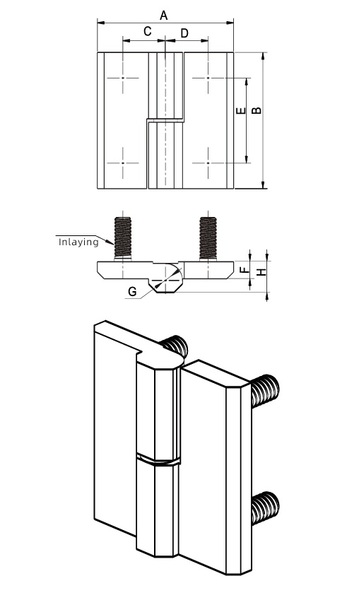

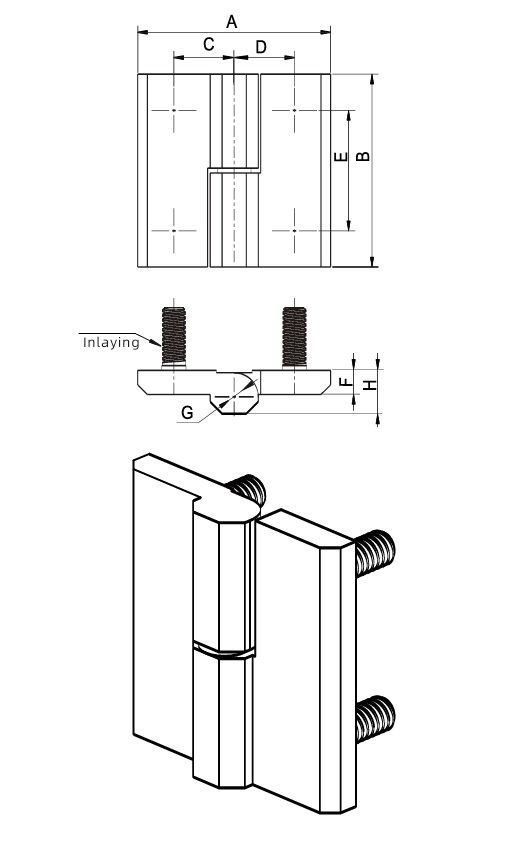

| A | 50 |
|---|---|
| B | 50 |
| C | 15 |
| D | 15 |
| E | 30 |
| F | 6 |
| G | 6 |
| H | 11.5 |
Product Variations
| Model | Material | Assembly Style | Opening Angle | Hinge Type | A | B | C | D | E | F | G | H | Stock | Quantity | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PA6120321-0LH-0SW PA6120321-0LH-0SW | Zamak | Exposed mounting | 90º | Flat hinge | 50 | 50 | 15 | 15 | 30 | 6 | 6 | 11.5 | |||
| PA6120321-0RH-0SW PA6120321-0RH-0SW | Zamak | Exposed mounting | 90º | Flat hinge | 50 | 50 | 15 | 15 | 30 | 6 | 6 | 11.5 | |||
PA6120321-0LH-0SW
Dobradiça Desmontavel ZMK 50x50 C/ Pernos LH
Material = Zamak
Assembly Style = Exposed mounting
Opening Angle = 90º
Hinge Type = Flat hinge
A = 50
B = 50
C = 15
D = 15
E = 30
F = 6
G = 6
H = 11.5
PA6120321-0RH-0SW
Dobradiça Desmontavel ZMK 50x50 C/ Pernos RH
Material = Zamak
Assembly Style = Exposed mounting
Opening Angle = 90º
Hinge Type = Flat hinge
A = 50
B = 50
C = 15
D = 15
E = 30
F = 6
G = 6
H = 11.5
